Our Fog Products

We ship our products worldwide. Please contact us for a shipping quote.

Rocket Fog Generators

Robust, portable fog generators that really pack a punch!

Ideal for:

  • air flow visualisation
  • leak testing
  • special effects
  • fog detector testing
  • fire training

There are two types of machine available - the Rocket QD makes fog that disperses quickly (PS21), and The Rocket makes long-lasting fog (PS23).

The fog generators are also available with two control options. The Basic option allows you to operate the unit off-mains power - you can produce a considerable amount of fog 'off power' using the retained energy within the high mass heat exchanger, allowing you to carry the generator around, making fog as required, without a trailing electrical lead. After being on mains for around 15 minutes, the fog machine will generate large amounts of fog for around 2.5 minutes whilst off power. There is also the Remote control option unit which comes with a remote control (but cannot be used off-power). These are two separate machines - you cannot attach a remote to the basic control machine retrospectively.

Connected to the mains, all these units can operate continuously at full output.

In service with numerous fire authorities world-wide, many NATO forces (including for shipboard training), as well as analytical laboratories, asbestos removal specialists, and HVAC contractors, these fog machines have a reputation for simplicity of operation and reliability.

These units are ideal for when you require extremely dense concentrations of fog, or extremely large volumes need to be filled with fog. This is because fog produced is very persistent. The high power version generates even more fog than the normal models and is one of the most powerful hand held fog generators available today.

Features:

  • Compact size, robust construction
  • Hand portable
  • Off-power capable (Basic version)
  • Continuous full output (on mains power)
  • Variable output (0 -> maximum)
  • Persistent fog (code PS23)
  • Quickly dispersing fog (code PS21)
  • Non-toxic, thick, dry, white fog
  • NATO codified version available

Construction:

  • Precision, machined heat exchanger, guaranteed for life!
  • Utilises aerosol canisters for safe, convenient operation
  • Available in 'basic' or 'remote' formats
  • Light and portable

Made in UK

Order code Description
PS21 1.1kW quick dispersing fog machine
PS23 1.1kW persistent fog machine
PS25 2.2kW persistent fog machine

Operation:

  • Basic format (with off-power facility)
  • Remote format (both on-board operation, or remote) (remote cannot be used off-power)
  • Particle size 0.2 - 0.3 micron, mass median diameter - the smallest particle size of any of our machines.

Remote model is supplied with
5 metre remote control

Available as 230v or 110v
(please specify when ordering)

5 year parts warranty
Lifetime guarantee on heater block

Model Fog Hang Time (at 20C)
PS21 1 - 2 minutes
PS23/25 1.25 - 1.5 hours
General Specification (approx.) PS21 / PS23 PS25
Size (cm) (L x W x H) 36 x 14 x 20 36 x 14 x 20
Weight (kg) 5.5 7
Heat exchanger wattage (W) 1,100 2,200
Power Supply 230v, 50hz
(110v, 50/60hz optional)
230v, 50hz
(110v, 50/60hz optional)
Warm up time from cold (mins) 5 4
Duration of aerosol at maximum output (mins) 18 - 20 10 - 11
Fog output (m3/min @ 1.5m visibility) 0 - 97 0 - 170
Particle size (micron, mass median diameter) 0.2 - 0.3 0.2 - 0.3
Operation off the mains power supply? In basic format, yes In basic format, yes



Please contact us for further information or to order

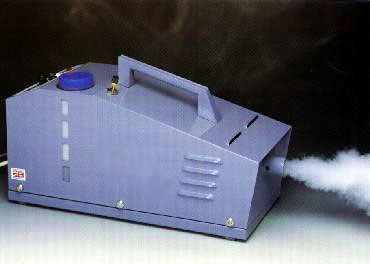

PS27 Dragon High Output (2.2kW) Fog Generator

This high quality fog generator is well suited to applications where continuous, high fog output is required, since it utilises a modular peristaltic pump system rather than conventional, low cost piston pumps.

Using an MOV protected solid state relay for heater switching at zero volts, and a plug in electronic module, key components are not compromised in the other key areas within the system.

Ideal for:

  • air flow visualisation
  • leak testing
  • fire safety training
  • special effects

The pump draws fog Fluid A (persistent) or fog Fluid B (quickly dispersing) from its integral 2 litre reservoir (or an external reservoir also available), forcing it into the unique precision machined heat exchanger, where it is vaporised. On exiting the heat exchanger, the vapour condenses to form dense, white, non toxic fog , with an incredibly consistent and small particle size of 0.2 - 0.3 micron. The smaller the particle size of the fog, the lower its settling velocity (the rate at which a particle will fall, due to gravity). A fog particle of 0.2 micron in diameter will fall at 8mm/hr, compared to a 2 micron particle, which falls at 468mm/hr. In essence this means that the smaller the particle of fog you produce, the less chance there is that deposition of fog particles will occur.

The machine was voted overall winner in Fire Professional magazine’s Back to Back 1999 fog generator test, against 4 other leading brands.

The article describes its performance “overall, across the testing criteria, it scored heavily and consistently. It’s beautifully made, works well and from what we have seen here makes extremely efficient use of the fluid - a consumable that those of you who are acutely budget conscious will want to keep your eye on.”

We say you cannot buy a superior quality fog machine than this. The quality of engineering that goes into this machine is unmatched in our industry.

Features:

  • Can produce high quality fog continuously at maximum output
  • Variable output control (0 -> maximum)
  • Can produce persistent fog (Fluid A) or quickly dispersing fog (Fluid B) as required*
  • Plug-in electronic module

* machine requires minor manual adjustment on control panel to set different operating temperature. Instructions provided with unit.

Construction:

  • Precision, machined heat exchanger, guaranteed for life!
  • Integral 2 litre reservoir, with sightglass
  • Solid state switching
  • Peristaltic pump

5 year parts warranty
Lifetime guarantee on heater block

Supplied with 5 metre remote control

Available for 230v or 120v

Operation:

  • Power consumption: 120V / 230V, 50/60Hz
  • Heat exchanger wattage: 2200 watts
  • Warm up time from cold: 5 mins
  • Duration of full fluid tank at maximum output: 40 mins
  • Fog output: 0 - 420 m3/min @1.5m visibility (14,830 ft3/min)
  • Particle size 0.2 - 0.3 micron, mass median diameter

Mechanical Specifications:

  • Height: 290mm (11.6in.)
  • Width: 230mm (9.2in.)
  • Length: 550mm (22in.)
  • Weight: 13.5kg (29.7lbs.)

Fluid type Fog Hang Time (at 20C)
A
1.25 - 1.5 hours
B
2 - 4 minutes

Also available with external fluid pumping facility

Please contact us for further information or to order

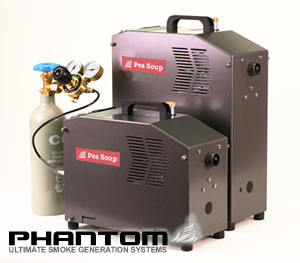

Oil Based Fog Generators

Probably the most effective fog system available today

Ideal for:

  • Hot fire training
  • Leak testing
  • Air flow testing
  • Special effects

The fog produced by our oil-based fog generators can persist to 180 - 200C before layering commences, making the unit ideal for hot fire training applications.

However, even if training or fog logging in unheated conditions, the fog produced by the Phantom will out-perform all conventional water based alternatives, whilst dramatically reducing the consumption of fog chemical. Typically, users of water based glycol fog systems can experience reductions of 80 - 90% in fog chemical consumption, for similar if not better fog densities.

With no routine maintenance required and a choice of heat exchanger capacities to suit fire training needs, it's no wonder fire training centres throughout the world have selected it as their primary fog system.

Particle size is a consistent 0.2 - 0.3 microns in diameter, making the unit ideally suited to testing HEPA filtration.

Available as 230v or 110v
(please specify when ordering).

Extremely high temperature resistance
(to 200C)

Automatic purging operation,
maintenance free

Precision machined heat exchanger,
guaranteed for life!

Digital temperature control
& solid state switching

The Pea Soup oil based fog machines are also ideally suited to leak and air flow testing for large applications. Their incredibly efficient fluid use (up to one twentieth that of water based machines) and zero maintenance makes it ideal for fixed installations in theme parks and attractions. Oil-based fog is very persistent compared to water-based types and therefore doesn't evaporate or layer even when filling large areas. And as it uses less fluid, the fog produced is even safer.

  Fog Hang Time (at 20C)
Oil based fog
   3 - 4 hours
Typical 'entertainment' fog system
   15 - 20 minutes

10 year parts guarantee
Lifetime guarantee on heater block

We simply say, you cannot buy a superior fog system to this!

 PS31 Models
 General Specification (approx)
Size (mm)  410 x 180 x 370
Weight (kg)  12
Power Supply  230v, 50hz
Optional  110v, 50/60hz
Warm up time from cold (mins)  4
Particle Size (micron mmd)  0.2 - 0.3


PS31ST
Standard Variant (1.1kw)

Heat Exchanger wattage (W)  1100
Running time at maximum output (min)  40
Fog output (m3/min @ 1.0m visibility)  0 - 150
Fog oil consumption (ml/hr)  2000


PS31HI
Hi-output Variant (2.2kw)

Heat Exchanger wattage (W)  2200
Running time at maximum output (min)  22
Fog output (m3/min @ 1.0m visibility)  0 - 290
Fog oil consumption (ml/hr)  3600
Made in UK
 PS33 Models
General Specification (approx)
Size (mm)  410 x 180 x 540
Weight (kg)  17
Power Supply  230v, 50hz
Optional  110v, 50/60hz
Warm up time from cold (mins)  4
Particle Size (micron mmd)  0.2 - 0.3


PS33ST
Standard Variant (1.1kw)

Heat Exchanger wattage (W)  1100
Running time at maximum output (min)  145
Fog output (m3/min @ 1.0m visibility)  0 - 150
Fog oil consumption (ml/hr)  2000

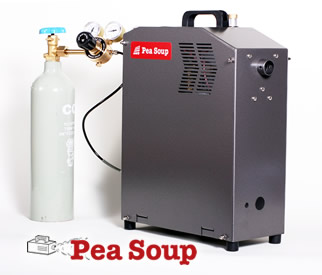

PS33HI
Hi-output Variant (2.2kw)

Heat Exchanger wattage (W)  2200
Running time at maximum output (min)  85
Fog output (m3/min @ 1.0m visibility)  0 - 290
Fog oil consumption (ml/hr)  3600
Made in UK



Please contact us for further information or to order
